उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: OUB
प्रमाणन: ISO 9001
मॉडल संख्या: 23ई-15-05113
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 10 पीसी/ट्रायल ऑर्डर स्वीकार करें
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: पीपी बैग इनसाइड.उटर फिल्म लिपटे फिल्म के साथ कार्टन है।
प्रसव के समय: अपने desposit प्राप्त करने के बाद 5-15 दिनों के भीतर
भुगतान शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता: 1000pcs
भाग संख्या: |
23ई-15-05113 |
नमूना: |
GD355A-1 |
मशीन: |
ग्रेडर |
आकार: |
ओम |
नाम: |
सेवा किट |
सिलेंडर: |
हस्तांतरण |
तापमान: |
+230℃ |
सामग्री: |
फाइबरग्लास, सिलिकॉन, एनबीआर, जाली स्टील |
रंग: |
काला, सफ़ेद, लाल |
भाग संख्या: |
23ई-15-05113 |
नमूना: |
GD355A-1 |
मशीन: |
ग्रेडर |
आकार: |
ओम |
नाम: |
सेवा किट |
सिलेंडर: |
हस्तांतरण |
तापमान: |
+230℃ |
सामग्री: |
फाइबरग्लास, सिलिकॉन, एनबीआर, जाली स्टील |
रंग: |
काला, सफ़ेद, लाल |
1. Quick Details of seal 23E-15-05113 :
| Part NO. | 23E-15-05113 |
| Machine | GD355A-1 |
| Size | OEM |
| Material | fiberglass,rubber,forged steel |
| Oil seal type | TRANSMISSION,SERVICE KIT |
2. 23E-15-05113 parts on group :
| NO. | PART NAME | PART NAME | QTY |
| 1 | 23E-15-05113 | SERVICE KIT,TRANSMISSION | 1 |
| 2 | 07000-05310 | O-RING | 1 |
| 3 | 07000-73035 | O-RING | 1 |
| 4 | 07000-73025 | O-RING | 1 |
| 5 | 07000-02065 | O-RING | 1 |
| 6 | 07000-05165 | O-RING | 1 |
| 7 | 07000-72014 | O-RING | 1 |
| 8 | 23B-15-16130 | GASKET | 1 |
| 9 | 07000-73022 | O-RING | 1 |
| 10 | 07000-72018 | O-RING | 1 |
| 11 | 07000-72021 | O-RING | 1 |
| 12 | 07000-73022 | O-RING | 1 |
| 13 | 07000-72021 | O-RING | 1 |
| 14 | 07000-72018 | O-RING | 1 |
| 15 | 07000-73038 | O-RING | 1 |
| 16 | 07000-73022 | O-RING | 1 |
| 17 | 07000-73025 | O-RING | 1 |
| 18 | 07000-73022 | O-RING | 1 |
| 19 | 07000-72018 | O-RING | 2 |
| 20 | 07000-72016 | O-RING | 2 |
| 21 | 07002-03634 | O-RING | 1 |
| 22 | 07000-73025 | O-RING | 1 |
| 23 | 07000-73045 | O-RING | 1 |
| 24 | 07000-02075 | O-RING | 1 |
| 25 | 07000-02090 | O-RING | 1 |
| 26 | 07000-02090 | O-RING | 3 |
| 27 | 07000-05355 | O-RING | 1 |
| 28 | 07000-73028 | O-RING | 1 |
| 29 | 07000-73035 | O-RING | 1 |
| 30 | 07000-02075 | O-RING | 1 |
| 31 | 113-15-29220 | RING,SEAL | 1 |
| 32 | 103-15-29210 | SEAL,RING | 1 |
| 33 | 113-15-29250 | RING,SEAL | 1 |
| 34 | 144-15-11290 | RING,SEAL | 2 |
| 35 | 103-15-29270 | SEAL,RING | 1 |
| 36 | 113-15-29250 | RING,SEAL | 1 |
| 37 | 103-15-29260 | SEAL,RING | 1 |
| 38 | 113-15-29250 | RING,SEAL | 1 |
| 39 | 103-15-29260 | SEAL,RING | 1 |
| 40 | 113-15-29250 | RING,SEAL | 1 |
| 41 | 103-15-29260 | SEAL,RING | 1 |
| 42 | 113-15-29250 | RING,SEAL | 1 |
| 43 | 125-15-39210 | RING,SEAL | 1 |
| 44 | 113-15-12861 | RING,SEAL | 1 |
| 45 | 234-15-29220 | RING,SEAL | 1 |
| 46 | 23E-15-19210 | SEAL,RING | 1 |
| 47 | 07000-02115 | O-RING,RING | 1 |
| 48 | 07000-73025 | O-RING | 2 |
| 49 | 07005-01212 | GASKET | 2 |
| 50 | 07012-11065 | SEAL,OIL | 1 |
| 51 | 23B-15-13451 | GASKET | 1 |
| 52 | 130-09-11590 | SEAL,OIL | 1 |
| 53 | 23B-15-13451 | GASKET | 1 |
| 54 | 07000-05170 | O-RING | 1 |
| 55 | 07012-10080 | SEAL,OIL | 1 |
| 56 | 07000-02135 | O-RING | 1 |
| 57 | 07000-02100 | O-RING | 1 |
| 58 | 232-15-15971 | GASKET | 1 |
| 59 | 232-15-15970 | GASKET | 1 |
| 60 | 232-15-15961 | GASKET | 1 |
| 61 | 232-15-15960 | GASKET | 1 |
| 62 | 23B-15-15952 | GASKET | 1 |
| 63 | 23B-15-15951 | GASKET | 1 |
| 64 | 23B-15-15950 | GASKET | 1 |
| 65 | 07000-73028 | O-RING | 2 |

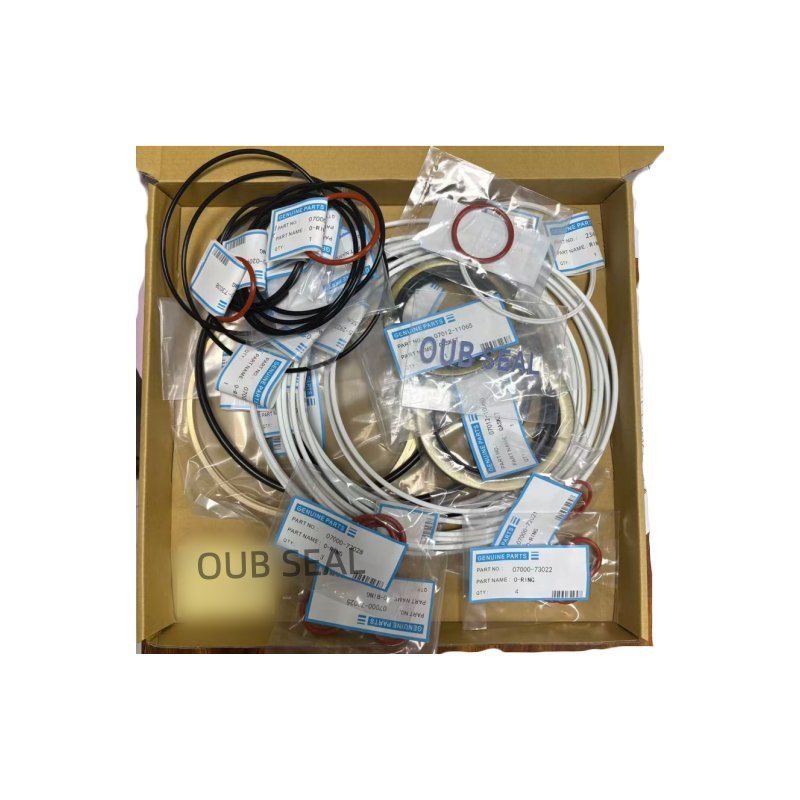

3. 23E-15-05113 picture:
4. Service ring part no. :
| PART NO. | PART NO. | Part NO. |
| 23E-15-05112 | 56B-15-05010 | 707-98-37570 |
| 23E-15-05111 | 238-15-05110 | 711-28-05012 |
| 23E-15-05113 | 232-14-05040 | 561-15-05041 |
| 425-32-05010 | 707-98-43260 | 561-15-05030 |
| 56B-15-05000 | 707-99-14290 | 707-99-43270 |
| 707-99-64180 | 707-99-66190 | 707-99--37570 |
5. FAQ
Q:The Transmission Repair Kit contains brass rings; what material are they made of?
A: Material Composition of Synchronizer Rings
The rings are made from a specialized brass alloy to meet the high demands of the transmission environment. While brass is generally a Copper (Cu) and Zinc (Zn) alloy, the rings often include other elements to enhance their performance:
Q: What is the function of this brass rings?
A: The primary function of the brass rings (specifically synchronizer rings or blocker rings) in a grader's transmission is to synchronize the rotational speed of the gear you are shifting into with the rotational speed of the shaft it needs to engage. This ensures a smooth, quiet, and non- destructive gear shift.
If you need more details, you can join us for further discussion.
