Guangzhou Opal Machinery Parts Operation Department vivianwenwen8@gmail.com 86-135-33728134
उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: OUB
मॉडल संख्या: 195-50-41170
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 10 पीसी/ट्रायल ऑर्डर स्वीकार करें
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: पीपी बैग अंदर, गत्ते का डिब्बा बॉक्स बाहर
प्रसव के समय: अपने desposit प्राप्त करने के बाद 5-15 दिनों के भीतर
भुगतान शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता: 1000pcs
PART NO.: |
195-50-41170 |
Seal type: |
SEAL,DUST |
Material: |
Steel and PU |
Function: |
Prevent dust, dirt, water, and debris from entering the axle assembly |
Pressure Range: |
0-0.5MPA |
Certifie: |
ISO9001 |
Temperature: |
-10~+120℃ |
Service: |
OEM and ODM |
Color: |
Dark green |
PART NO.: |
195-50-41170 |
Seal type: |
SEAL,DUST |
Material: |
Steel and PU |
Function: |
Prevent dust, dirt, water, and debris from entering the axle assembly |
Pressure Range: |
0-0.5MPA |
Certifie: |
ISO9001 |
Temperature: |
-10~+120℃ |
Service: |
OEM and ODM |
Color: |
Dark green |
1. Repair Seal Kit Details
| Part NO | 195-50-41170 |
| Machine | Komatsu |
| Size | OEM |
| Material | NBR |
| Seal type | SEAL |
2. Parts on group:
| NO. | PART NO. | PART NAME | QTY |
| 195-50-00182 | EQUALIZER BAR A | 1 | |
| 1 | EQUALIZER BAR | 1 | |
| 2 | 195-50-41132 | BUSHING | 2 |
| 3 | 195-78-41320 | SEAL | 2 |
| 4 | 195-50-41161 | BUSHING | 2 |
| 5 | 195-50-41170 | SEAL | 4 |
| 6 | 04071-00160 | RING | 2 |
| 7 | 07020-00000 | FITTING | 2 |
| 8 | 195-50-41120 | PIN | 1 |
| 9 | 195-50-11320 | PLATE | 2 |
| 10 | 01010-82050 | BOLT | 4 |
| 11 | 01643-32060 | WASHER | 4 |
| 12 | 07049-02430 | PLUG | 1 |
| 13 | 195-50-51150 | SHAFT | 2 |
| 14 | 195-50-52360 | COVER | 1 |
| 15 | 195-50-52370 | COVER | 1 |
| 16 | 07000-12020 | O-RING | 2 |
| 17 | 01010-81665 | BOLT | 8 |
| 18 | 01643-31645 | WASHER | 8 |
| 19 | 195-50-52310 | COVER | 1 |
| 20 | 195-50-52320 | COVER | 1 |
| 21 | 198-50-61350 | COVER | 2 |
| 22 | 01010-81225 | BOLT | 4 |
| 23 | 01643-31232 | WASHER | 4 |
| 24 | 195-50-51510 | BOLT | 4 |
| 25 | 01803-03034 | NUT | 4 |
| 26 | 01643-33080 | WASHER | 8 |
| 27 | 07213-50710 | CONNECTOR | 2 |

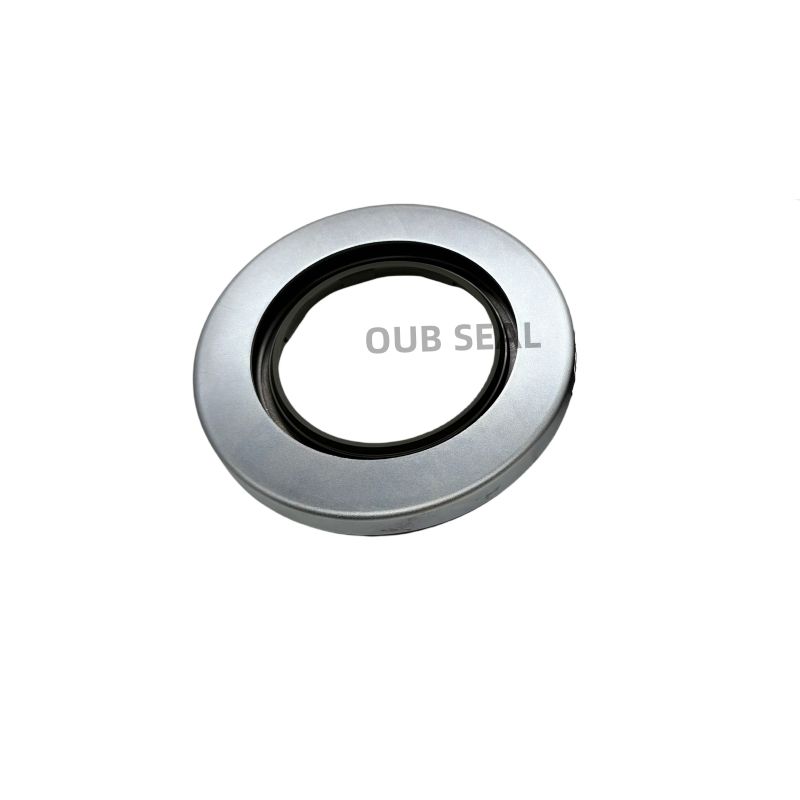

3. 195-50-41170 PICTURE:
4. SEAL PART NO. FOR KOMATSU :
| PART NO. | Part NO. | Part NO. |
| 195-50-41170 | 21N-54-11150 | 56B-15-19110 |
| 170-27-00111 | 22L-09-R3660 | 6208-21-1310 |
| 423-22-22460 | 415-22-12460 | 111-92-11250 |
| 130-Z79-1180 | 154-32-41161 | 707-56-70540 |
| 21T-54-64370 | 21T-54-64380 | 201-25-11110 |
| 207-03-76460 | 175-27-00130 | 17M-03-54130 |
| 2A8-70-13410 | 111-92-11190 | 705-17-01470 |
5. FAQ
Q1. What are the characteristics of PU material?
A1. Polyurethane (PU) is a versatile polymer with a wide range of properties that make it suitable for various industrial and consumer applications. Below are its key characteristics:
(1). Mechanical Properties:
High Elasticity & Flexibility – PU can be formulated to be soft (like foam) or rigid (like plastic);
Excellent Abrasion Resistance – More durable than rubber in high-wear applications;
Good Tensile Strength – Resists tearing and deformation under stress;
Load-Bearing Capacity – Used in shock absorbers, wheels, and structural components.
(2) Chemical Resistance:
Resistant to Oils & Greases – Ideal for seals, gaskets, and hydraulic components;
Moderate Acid/Base Resistance – Handles weak acids/bases but degrades in strong chemicals;
Poor Solvent Resistance – Swells or dissolves in ketones, esters, and chlorinated solvents.
Q2. can you tell me the difference between dust seal PU materal and dust seal rubber material ?
A2. Here is a table to show you their differences of functional:
| Feature | PU Dust Seal | Rubber Dust Seal |
| Sealing Effectiveness | Better for dynamic, high-wear applications | Better for static/low-friction seals |
| Lifespan | Longer in abrasive environments | Shorter under heavy wear |
| Cost | Higher (due to performance benefits) | Lower (economical for general-purpose use) |
| Installation | May require precise fit (stiffer material) | Easier to install (more flexible) |
6. Exhibition & Warehous
Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
