उत्पाद का विवरण
Place of Origin: China
ब्रांड नाम: OUB
Model Number: 421-33-11480
भुगतान और शिपिंग की शर्तें
Minimum Order Quantity: 10 Pcs/Accept trial order
मूल्य: बातचीत योग्य
Packaging Details: PP Bag Inside.outer is carton with film wrapped.
Delivery Time: Within 5-15 days after getting your desposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000Pcs
Part no.: |
421-33-11480 |
Model: |
WA450 WA470 HM300 |
Machine: |
KOMATSU WHEEL LOADER |
Size: |
OEM |
Name: |
SEAL |
Cylinder: |
FRONT WHEEL BRAKE |
Temperature: |
-30℃-+160℃ |
Material: |
RUBBER,VITON |
Color: |
Black |
Part no.: |
421-33-11480 |
Model: |
WA450 WA470 HM300 |
Machine: |
KOMATSU WHEEL LOADER |
Size: |
OEM |
Name: |
SEAL |
Cylinder: |
FRONT WHEEL BRAKE |
Temperature: |
-30℃-+160℃ |
Material: |
RUBBER,VITON |
Color: |
Black |
1. Quick Details of lip seal 421-33-11480 :
| Part NO. | 421-33-11480 |
| Machine | WA400 WA500 WA420 |
| Size | OEM |
| Material | RUBBER,VITON |
| Oil seal type | SEAL PISTON |
2. 421-33-11480 parts on front wheel brake :
| NO. | PART NO. | PART NAME | QTY |
| 424-22-10071 | FRONT AXLE Assembly | 1 | |
| 424-22-10070 | FRONT AXLE Assembly | 1 | |
| 424-33-11003 | BRAKE Assembly | 2 | |
| 421-33-11080 | BRAKE Assembly | 2 | |
| 1 | 421-33-11112 | CYLINDER | 1 |
| 2 | 581-32-12140 | PLUG | 1 |
| 3 | 566-32-11430 | BLEEDER | 1 |
| 4 | 566-32-11620 | CAP | 1 |
| 5 | 07043-50211 | PLUG | 1 |
| 6 | 07040-11409 | PLUG | 2 |
| 7 | 07002-31423 | O-RING | 2 |
| 8 | 421-33-11450 | SLEEVE | 1 |
| 8 | 421-33-11130 | SLEEVE | 1 |
| 421-33-11450 | SEAL | ||
| 421-33-11430 | SEAL | ||
| 9 | 421-33-11440 | SEAL | 1 |
| 9 | 421-33-11420 | SEAL | 1 |
| 421-33-11450 | SEAL | ||
| 421-33-11440 | SEAL | ||
| 10 | 07000-25400 | O-RING | 1 |
| 11 | 04020-00820 | PIN,DOWEL | 2 |
| 12 | 01010-31235 | BOLT | 12 |
| 13 | 01643-31232 | WASHER | 12 |
| 14 | 424-33-11640 | PISTON | 1 |
| 14 | 424-33-11122 | PISTON | 1 |
| 424-33-11640 | SEAL | ||
| 421-33-11450 | SEAL | ||
| 15 | 421-33-11430 | SEAL | 1 |
| 15 | 421-33-11410 | SEAL | 1 |
| 16 | 421-33-11620 | SPRING | 4 |
| 17 | 424-33-11611 | GUIDE | 4 |
| 18 | 04020-00514 | PIN,DOWEL | 4 |
| 19 | 07000-03030 | O-RING | 4 |
| 20 | 07000-05315 | O-RING | 1 |
| 21 | 01010-62060 | BOLT | 10 |
| 22 | 01643-32060 | WASHER | 10 |
| 23 | 421-33-11322 | RETAINER | 1 |
| 24 | 07000-05350 | O-RING | 1 |
| 25 | 04020-00820 | PIN,DOWEL | 2 |
| 421-33-00020 | FLOATING SEAL Assembly | 1 | |
| 28 | 421-33-11222 | HUB | 1 |
| 29 | 07000-25490 | O-RING | 1 |
| 30 | 421-33-11211 | GEAR | 1 |
| 31 | 421-33-11260 | PLUG | 2 |
| 32 | 07002-01223 | O-RING | 2 |
| 33 | 01010-31440 | BOLT | 16 |
| 34 | 01643-31445 | WASHER | 16 |
| 35 | 421-33-11311 | GEAR | 1 |
| 36 | 01010-61665 | BOLT | 16 |
| 37 | 01643-31645 | WASHER | 16 |
| 38 | 566-33-41230 | PLATE | 5 |
| 39 | 425-33-11510 | DISC | 4 |
| 39 | 566-33-41240 | DISC | 4 |
| 40 | 07000-32016 | O-RING | 2 |
| 41 | 07000-25490 | O-RING | 1 |
| 42 | 01010-31440 | BOLT | 20 |
| 43 | 01643-31445 | WASHER | 20 |
| 44 | 07040-12012 | PLUG,(FOR SHIPPING) | 1 |
| 45 | 07002-02034 | O-RING,(FOR SHIPPING) | 1 |

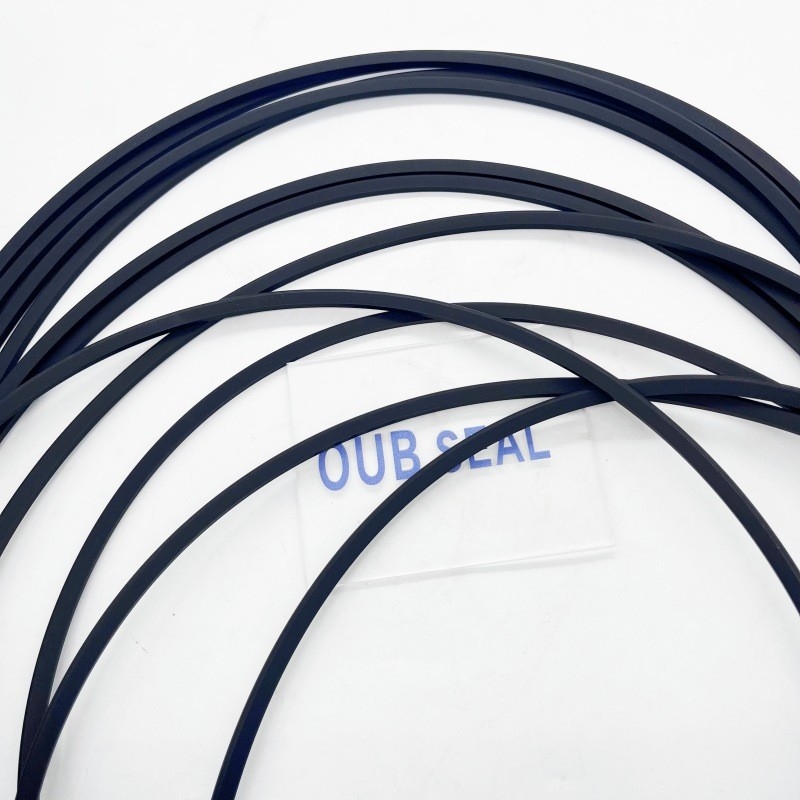

3. 421-33-1180 picture:
4. Service kit and seal ring part no. fits for komatsu:
| PART NO. | PART NO. | Part NO. |
| 421-33-11480 | 425-12-11220 | 426-09-11330 |
| 421-22-21760 | 425-20-15730 | 426-09-11320 |
| 421-33-11440 | 425-20-15740 | 6745-71-5550 |
| 421-20-12740 | 425-15-28710 | 425-15-28710 |
|
721-09-11320 |
421-09-11340 | 424-09-11310 |
| 421-07-18541 | 206-54-A1130 | 56B-54-15651 |
5. FAQ
Q: Can I get the 421-33-11480 details ?
A: Thank you for your request. you can check the details form the my webside or contact our team.
Q: Can I negotiate the prices?
A: Sure, we may consider discounts for bulk order of products.
Q: Do you have this in stock? I need it urgently.?
A: Yes, cantact us and our team will reply soon.
Q: I have other part numbers that I need, can you check them for me?
A: We have a professional system and team, and we are happy to assist you with inquiries and quotations.
6.Exhibition & Warehous
Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
